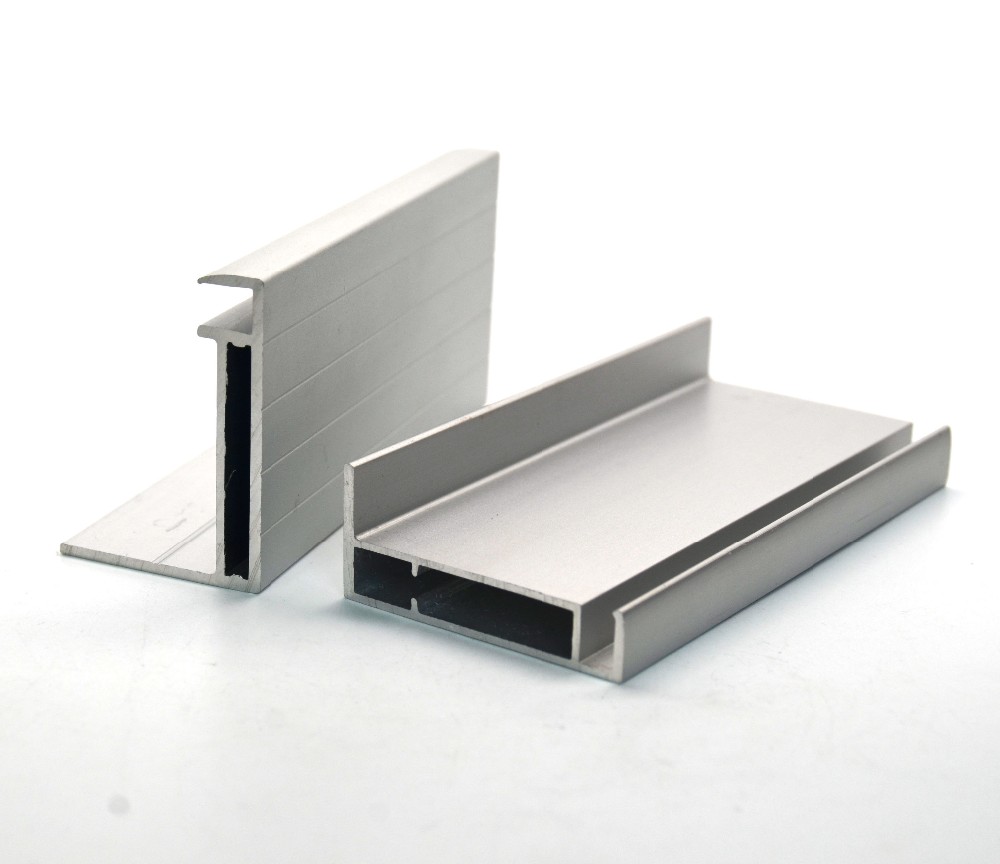

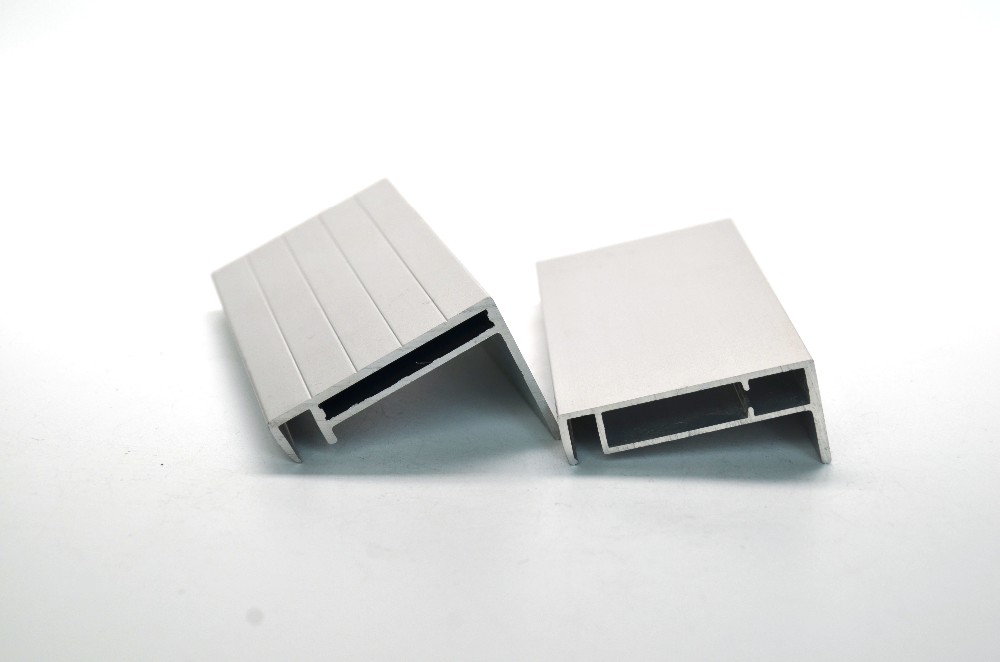

Hot Sale New Design Extrusion Aluminum PV Solar Panel Frame
Home > Products > PV solar frame and bracket > Hot Sale New Design Extrusion Aluminum PV Solar Panel Frame

Hot Sale New Design Extrusion Aluminum PV Solar Panel Frame

    Unit Price: 2500~2750 USD
    Min. Order: 1 Ton
    Packaging: Our aluminium profile using following package way: Protective film/Craft paper/Cottom film/Carton box/Pallet
    Supply Ability: 4000 Metric Ton/Metric Tons per Month
    Port: Shanghai port

Product Description

Product Description

Hot Sale New Design Extrusion Aluminum PV Solar Panel Frame

Product Code
HBS-XM-255
Place of Origin
China
Brand Name
Homebound Swallow
Surface treatment
Mill finish/Anodizing with sandblasted/Powder coating/Electrophoresis
Alloy
6063/6061/6005/6082/6060
Temper
T5/T6
Thickness
0.30mm--Customized
Applications
Aluminum profile for  PV solar frame
Length
5.8 Meter
Certification
ISO9001,ISO14001,SGS
MOQ
1000KGS
Supply Ability
40000/Month
Packaging
Protective film/Craft paper/Cottom film/Carton box/Pallet
Shipping Port
Shanghai or Nanjing Port
Fob price
USD2500-USD2750/Ton
Lead time
12 working days for mold and sample delivery time.
15 working days after receiving deposit for full container
Total Employees
300
Payment term
30% T/T in advance, the balance will be paid before shipping.,Western Union or LC at sight
Loading quantities
20 GP loading 10 tons,40 HQ loading over 23 tons
Product Application
About Us

HeFei Homebound Swallow Aluminium product Co;Ltd

is a comprehensive enterprise that is specially engaged in manufacturing various aluminum profiles for architecture and for industrial usage, Homebound Swallow Aluminium locates in Xiatang town industrial park,Hefei city,Anhui Province--- with advantageous geographical location advantages and industry advantages, traffic developed ,even solid economic foundation,. which takes an area of more than 2000000 square meters, The company's total investment 10 million US dollars, annual production above 50,000 tons and annual sales above USD140,000,000.

HeFei Homebound Swallow Aluminium product Co;Ltd

is a comprehensive aluminum research and development enterprise with internationalized products, modernized technology and standardized management. The company integrates the R&D, production, finishing, distribution and technical service of aluminium into a whole. It has modern extruders 10 lines including model 300UT,650UT,880 UT, 1000 UT , 2000UT and 2750 UT, 5000UT and has a number of production lines in terms of oxidation, electrophoresis, spraying, sand blasting, wooden,PVDF powder coating ,etc.

Our products have great sales market not only in China but also in overseas such as German,France, Brasil,UK,Japan, Australia,Austra,Mexico,Southeast Asia and Africa,etc . They are commonly applied in Aluminium Extrusion profiles, for window and door,industry Aluminium Profile, We can also produce products according to clients' s technical drawing and sample with quality guarantee.

The company has strong technical force as well as hard-working, enterprising, perfect-seeking, and united employees. By right of a first-class talent structure, advanced production equipment, exquisite manufacturing technology and a scientific management system, the company is confident in making every product fine and will return the customers with the most favorable price and the best service.

Our Equipments

Die Workshop

Extrusion Line

Anodizing & Electophoresis Line

Powder Coating Line

Sandblasted Machine

Processing Machine

Equipment Introduction
Mold Workshop
Die and tooling are the most critical process for aluminum extrusion profile. Our die branch makes dies with state of computerized equipments, which ensures the die to be running properly fit to each individual extrusion press. We always work closely with our client to particular operational needs so completely that there is no big error in the process of making.

Extruding Line
Aluminum alloy surface is checked by qualityman to make sure it is clean without any deformities. Dies must be tested and corrected to high precision.The alloys are extruded to aluminum profiles of various shapes which depending on the dies used.

Anodizing Line
Anodizing is a process to produce aluminum oxide coating on the profile's surface, so as to protect it form natural oxidizing, thus enhance its hardness and durability against different weather conditions.

Powder Coating Line
Powder coating is a process to coat the aluminum profiles with a synthetic powder of a wide range of colors.Aluminum profile surface is degreased to remove oils and greases firstly. Any present oxide layer is etched by dipping the profiles in an acid activation tank. Profiles are then rinsed with deionized water to remove any remaining chemicals. Now the profiles are ready to undergo the chemical conversion coating.

Processing Machine
We have all been equipped with several dozens of world's most advanced production & processing facilities which are mainly imported from Germany,, Japan,Taiwan, etc. The ratio of new equipment is increasing year by year.The advanced production equipment are capable of handling most of request for complex and high precision processing of various types of Aluminum Extrusion Profiles
                                                   Hefei Homebound Swallow Aluminum Product Co;Ltd                                                                                                   Chemical Composition and Mechamical Prperties of 6061 and 6063
Chemical Compostion of Alloy
Alloy
Si
Fe
Cu
Mn
Mg
Cr
Zn
Ti
Others             Al
6061
0.4-0.8
0.70
0.15-0.40
0.15
0.8-1.2
0.04-0.35
0.25
0.15
0.15            Remainder
6063
0.2-0.6
0.35
0.10
0.10
0.45-0.9
0.10
0.10
0.10
0.15            Remainder
Mechamical Properties
Alloy
Temper
Tensile Strength
Yield strength
Stretching rate
    HV
        HW
6061
      T6
     ≥265Mpa
    ≥245Mpa
          ≥8%

6063
      T5
     ≥160Mpa
    ≥110Mpa
          ≥8%
 HV≥58
    HW≥8
      T6
      ≥205Mpa
    ≥180Mpa
          ≥8%
Electrophoresis Coating profile

       Class

             Anodizing Coating

Pating Coating

Composite Coating

Coating Pencil Hardness
       Average
        Partial
            A
        ≥10um
         ≥8um
     ≥12um
            ≥21um
                   ≥3H
            B
        ≥10um
         ≥8um
     ≥7um
            ≥17um
                    ≥3H
Powder Coating and wooden grain transfer printing
                    Coating thickness
        Coating indentation hardness
                Coating adhesion
                             40-120um
            Indentation resistance≥80
                            Class 0
Company Certification
Bank slip and comment from different countries clients
Container Loading

Container loading 1


Cotainer loading 2


Container loading 3


Container loaidng 4


Container loading 5


Container loading 6


Package Solution

                   Carton Box

                            EP Film


    EP Film and Kraft Paper

                 Pallet Box

               Wooden box

                Steel Trolly


FAQ.


Q1: Can i get some sample from your company ?

Yes, we can supply the free sample under your drawing, but the shipping cost be paid by our customers.

Q2: How to start new order or make payment term?

Proforma invoice will be sent firstly after client confirm order, which enclosed our bank information. Payment by T/T, Western Union or Paypal or Escrow(Alibaba).

Q3: How to confirm the Product Quality before place formal  order?

Afer client paid mold cost, we will make samples under clients confirmed drawings, once client get samples from us and also confirm it , we start to manufacture the products according to Contract.

Q4:What's your MOQ?

Our MOQ is 1000kgs. But usually we accept less quantity such as  first sample order  on the condition that sample charge is 100% paid.

Q5: How about delivery time?

Sample Delivery  time:10 working days after payment confirmed.

Formal order time:  15 working days for one full container.


Q6:Is there a discount?

Different quantity has different discount.

Q7: How do you treat quality complaint?

First of all, our quality control will reduce the quality problem to near zero. If there is a real quality problem caused by us, we will send you free goods for replacement or refund your loss.

Q8: How to contact us ?

You can chat with us choose  by Trademanager,Whats app,Wechat,MSN&Skype Online. You  choose your interested products and send exact inquiry to us. You can send email to us, or call our sales mobile  directly in your free time.

Contact us if you need more details on New Design Pv Solar Panel Frame. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Pv Solar Panel Frame、Extrusion Aluminum Pv Solar Panel Frame. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : PV solar frame and bracket
