custom aluminum extrusion profile for solar module panel frame
Home > Products > Customized Aluminum Profile > custom aluminum extrusion profile for solar module panel frame

custom aluminum extrusion profile for solar module panel frame

Product Description

custom aluminum extrusion profile for solar module panel frame

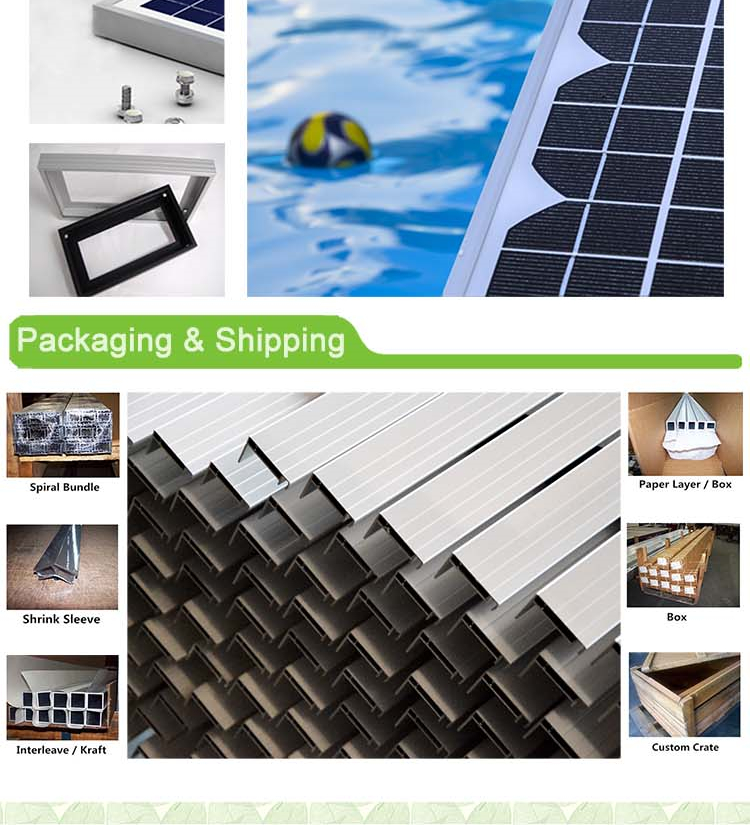

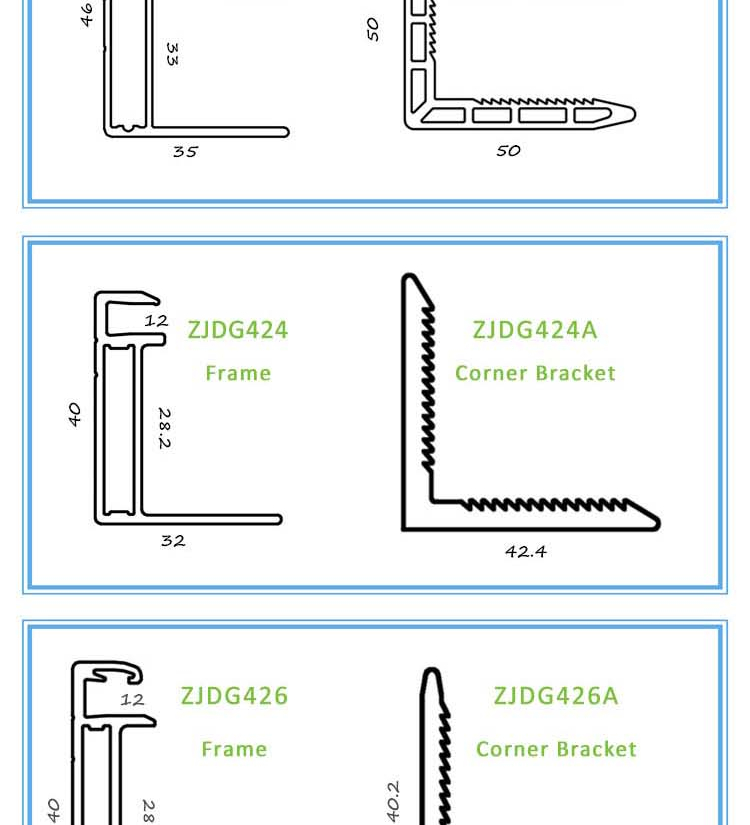

Solar Panel Frame


Our Capabilities
Aluminum Alloy

6063, 6005, 6005A, 6105, 6101, 6082, 6061

Tempers T4 , T5 , T6

Extrusion Capacity



2750 Ton, 10" Press
3600 Ton, 12" Press
5500 Ton, 14.5" Press
7500 Ton, 17.5" Press
9000 Ton, 20" Press

Surface Treatment



Mill finish , Sand Blasting , Anodizing ,

Wood grain , Electrophoresis painting ,

Powder coating

* Powder coating thickness: 60-120um

* Anodizing thickness: 8-25um

Fabrication



Cutting                     Countersinking

Punching                   Notching

Bending                    Deburring

Drilling                     Tapping

Milling                      Forming

Mitre cutting                CNC machining

Design

*Engineering -CAD Shape Design
*Early Supplier Involvement (ESI)
*Design for Manufacturability
*Wide Selection of Standard Shapes
*State-of-the-Art Manufacturing *Management System
*Single Source Extrusion and Fabrication

Standard Dies Shape

Angles(equal) , Angles(unequal) , C shapes , Caps , Carpet bar , Channels , Corners
Coves , Dividers , F shapes , H shapes , T shapes , Tracks , Tubes

Tolerance



According to GB5237.1-2008 or as per agreement



Industry Standards

ISO9001: 2008 , ISO14001: 2004 , ISO10012 , AAA grade standardize corporate

Testing

Validation , Durability , Reliability , Mechanical , Chemical , Physical , Dimensional ,
Component , Application

Our Factory


Our Services

SUPPLYING YOU WITH SOLUTIONS



Phone support: speak to a friendly voice you trust to get the job done

Industry leading practises:  take the stress out of material control

On the case: we make sure every order is chased

In the know: one step ahead, recording the progress of your order

Comprehensive technology: we use the latest technology to stay ahead

Mail us any time: fast and reliable responses to inbound email

FAQ
Q1: What are the advantages of using the 6000 series of alloys in aluminum extrusions?

A: The 6000 series, which incorporates magnesium and silicon, provide good extrudability,

strength, corrosion resistance, formability and machinability -- which explains why it’s also

ZJD’s alloy of choice for all our aluminum extrusions.

Q2: If I wish to send an electronic drawing to you, what types of files can you accept?

A: We accept many file formats such as DXF, DWG and IGES.

Q3: Why do extrusion companies always ask me to sign off on a drawing before they can

order tooling if I’ve already provided a drawing?

A: Oftentimes, we find a few key dimensions that are missing from the original drawing

that need to be clearly identified. Other times, we have taken exception to a tolerance,

dimension, alloy, note, surface condition, etc. It’s just our way of documenting exactly

what we have agreed upon.

Q4: What is the difference between anodized and mill finished?

A: Mill is the raw state of aluminum as extruded - no surface treatment. Anodized (also

known as Satin Clear or Clear Anodized) is an electrolytic process. This process increases

corrosion resistance and weather resistance.

Q5: What About Anodizer Rack Marks?

A: Electrical contact must be made to each part to be anodized. The more electrical

current required, the greater the electrical contact. The size of the contact therefore

depends on the anodizing process and the size of the part being anodized.

Q6: What is your closest sea-port ?

A: Dalian City SeaPort .



You May Like

Contact us if you need more details on Solar Module Frame. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Aluminum Profile for Solar Panel、Aluminum Extrusion Solar Panel Frame. If these products fail to match your need, please contact us and we would like to provide relevant information.
